Based on its many years of experience, Bucher Hydraulics Mobile Drives has developed the compact MOBILE product platform with multi-inverters and DC/DC converters – for successful application in your vehicles.
When looking for the right products to suit your requirements, you have the option of choosing an electric modular drive system for applications in commercial vehicles.
You can find the right product type for your application with ease thanks to the catalogue-based approach. In addition, the scalability covers a wide power range with identical external dimensions.
Vehicle manufacturers and parts suppliers can configure and create the best possible drive solution tailored to the respective task – quickly and without any irritating complications.
Working with our customers, we always select the appropriate solution for your application. This is then easily integrated into the vehicle thanks to a consistent and uniform concept for the connections.

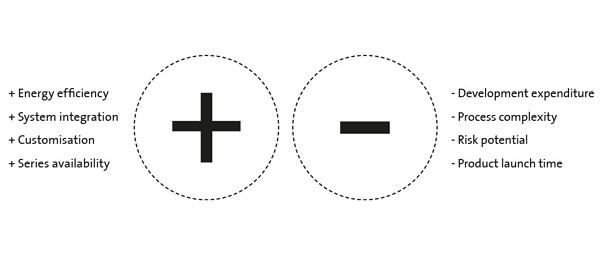

Designed as a catalogue-based modular electrical automotive drive system
Wide variety of versions available in just one design
The calalogue-based modular system is suitable for both mass production and customised solutions
Ambient temperature in area
- 40 °C ...+85 °C
Motor controller V/f or vector control
✓
Cooling circiut
Water/glykol (50/50) 15l/min, +30 °C ... +65 °C
Continuous current DCU 7.5/15/30/60
*8 A/15 A/32 A/58 A
Connections
Plug screw terminals for DC/DC
Max. motor current
150 % für 60 s 180 % für 10 s
Shock & vibrations
5.9 G
Max. speed
20'000 rpm
Protection against environmental influences
IP6K9K
Max. output frequency 3)
599 Hz
Certification
ECE R10
Motor feedback (resolver/thermal detector)
2
Interlock HW
Sensorless control for asynchronous motors
Readable error memory, cyclical error information
Sensorless controll for synchronous motors
CANopen
Precharge of DC-link adjustable:
up to 300 V
CANbus J1939
PSU
CANbus baud rate
1Mbit/s
Max. output current
adjustable
Digitale outputs
4
Parallel mode
8 devices
Digitale Inputs/FlexINs
Continuous current PSU 2.8/5.6
200 A
Peak current PSU 2.8/5.6
Precharge of DC-link adjustable: PSU 200 - 400 V PSU 400 - 800 V
up to 400 V up to 800 V
3 Other frequencies on request
- 40 °C ... +85 °C
Certificaton
ECE R10 Rev 5 suitable for installation according to ECE R100
Sensorless motor control
Connection
HV: Plug HVA 280
LV: Leavyseal
Continuous current DCU S 11/22
11 A/22 A
Motor current overload
150 % für 60 s
180 % für 10 s
Readable error memory cyclical error infotmation
CANbus J1939/CANopen
(auf dem gleichen Bus)
Motor protection
CANbus Baud rate
1Mbit/
DCU/PSU peak power1
60/60
200 ... 848 VDC
2 x 60 kW
-
2 x 58 A
2 x 104 A
EMDAG2603603U00010
30/30
2 x 30 kW
2 x 32 A
2 x 57 A
EMDAG2303303U00010
30/15
1 x 30 kW 1 x 15 kW
1 x 32 A 1 x 15 A
1 x 57 A 1 x 27 A
EMDAG2303153U00010
15/7.5
1 x 15 kW 1 x 7.5 kW
1 x 15 A 1 x 8 A
1 x 27 A 1 x 14 A
EMDAG2153752U00010
60/5.6
360 ... 848 VDC
60 kW/5.6 kW
24 VDC
1 x 58 A/200 A
1 x 104 A/200 A
EMDAG4562603C00010
60/2.8
60 kW/2.8 kW
12 VDC
EMDAG4282603T00010
30/5.6
30 kW/5.6 kW
1 x 32 A/200 A
1 x 57 A/200 A
EMDAG4562303C00010
30/2.8
30 kW/2.8 kW
EMDAG4282303T00010
15/5.6
15 kW/5.6 kW
1 x 15 A/200 A
1 x 27 A/200 A
EMDAG4562153C00010
15/2.8
15 kW/2.8 kW
EMDAG4282153T00010
5,6
5.6 kW
-/200 A
EMDAG3562000C00010
2,8
2.8 kW
EMDAG3282000T00010
22
200 ... 800 VDC
22 kW
22 A
39.6 A
EMDAG5223000U00000
11
11 kW
11 A
19.8 A
EMDAG5113000U00000
